Inspection and Repair

Page 31



Pivot and Yoke

a. Check that pivot and yoke for throwout
    bearing are not worn. Replace if worn.

b. Check that hole for return spring on yoke is
    not worn. A steel washer can be welded to
    restore hole.

c. Check that yoke is not bent. Replace if bent.

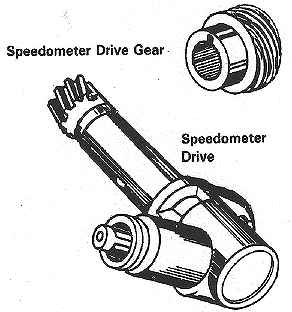

Speedometer Drive

a. Check that teeth on speedometer drive are
    not chipped, broken or galled. Replace if    damaged. Also replace speedometer
    drive gear.

b. Check that shafts turn easily without
    excessive play. Replace if worn.

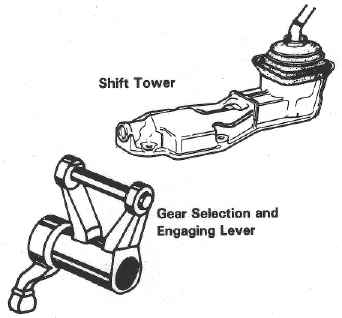

Shift Tower and Gear Selection and Engaging
Lever

a. If not disassembled, check for free movement
    without binding or excessive play. Disassemble
    for binding

b. If disassembled, check that all bearing
    surfaces are free from excessive wear.
    Replace worn parts.

c. Check that shafts are not bent. Replace bent
    parts.

d. Check that dog is not damaged. Replace if
    damaged.
