Page 38

Install Fifth and Reverse Gears a. If removed, install bushing (3) in reverse sliding gear (2). Attach shaft (4), iockwasher (6), and screws    (5). Tighten screws with impact driver. b. Assemble spacer (15) and key (14) on main shaft (13). c. Assemble reverse gear (16), hub 0 7), and spacer (18). d. Assemble spacer (11) on countershaft (12). e. Partially assemble fifth and reverse gear (10) on countershaft (12), and fifth gear assembly (19) on main shaft (13). f. Assemble fifth and reverse shift fork (1) on reverse sliding gear (2) and fifth gear assembly (19).   Carefully slide partially assembled parts on their respective shafts until they can be released. g. Carefully tap on fifth and reverse gear (10) until it is fully seated on countershaft (12). h. Assemble spacer (9), bearing (8), and nut (7). Finger tighten nut. i. Assemble bushing (20), bearing (21), spacer (22), ball (23), and speedometer drive gear (24).

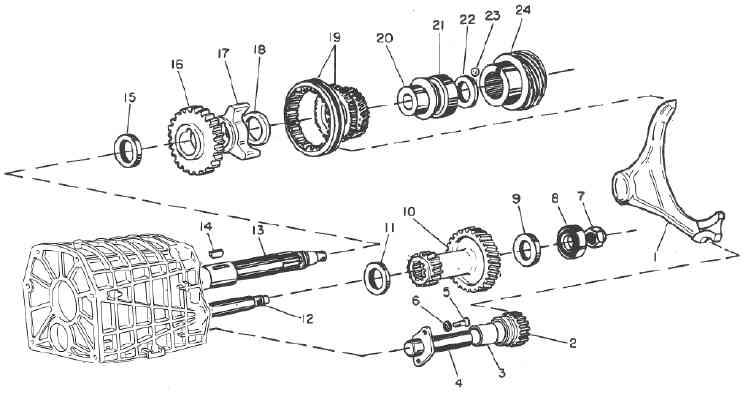

1 . Fifth and reverse shift fork 2. Reverse sliding gear 3. Bushing 4. Shaft 5. Screw 6. Lockwasher 7. 27-mm nut 8. Bearing	9. Spacer 10. Fifth and reverse gear 11. Spaper 12. Countershaft 13. Main shaft 14. Key 15. Spacer 16. Reverse gear	17. Hub 18. Spacer 19. Fifth gear assembly 20. Bushing 21. Bearing 22. Spacer 23. Ball 24. Speedometer drive gear
Fifth and Reverse Gears, Installation
