Page 6

MANUAL 5 - SPEED GEARBOX
Reverse-cone free-ring synchro-mesh on first-second-third and fourth gears and spring ring on fifth gear

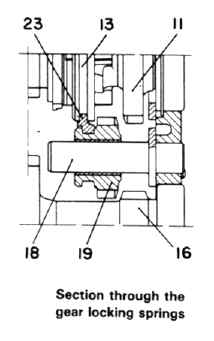

Section facing reverse gearshaft and cogs                                       Section through the gear locking springs
