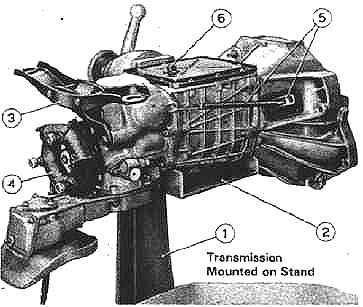

Mount Transmission and Drain Oil

a. Mount transmission on support (2) A.71001/19, part of rotating stand (1).

b. Using tools A.50113, A.55087, and A.57051, remove oil drain plug (6), oil level plug, and rear housing oil drain plug.

c. Remove three sell-locking nuts and bolts attaching flexible joint (4).

d. Remove two nuts and washers attaching rear supporting cross strut (3) to rear housing.

e. Remove return spring and rubber boot (5).

1. Rotating stand                4. Flexible joint
2. Support                          5. Spring and rubber boot
3. Rear supporting cross      6. Oil drain plug
    strut

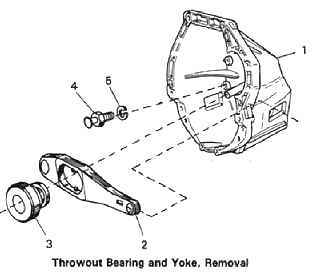

Remove Yoke and Throwout Bearing

a. Unhook yoke (2) from pivot (4) by sliding yoke toward return spring end.

b. When unhooked, guide yoke and throwout bearing (3) off input shaft.

c. Remove pivot (4) and lockwasher (5) from bellhousing (1) only if damaged.

1. Bellhousing           4. Pivot
2. Yoke                    5. Lockwasher
3. Throwout bearing

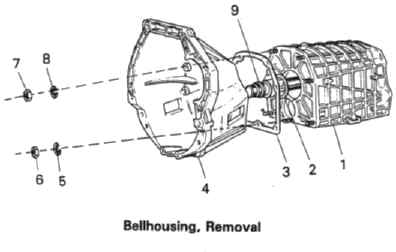

Remove Bellhousing

a. Remove six nuts (7), lockwashers (8), and one nut (6) and lockwasher (5) attaching bellhousing (4) to case (1).

b. Remove gasket (3) and spring washer (2). Remove seal (9) from the bellhousing (4) only if the seal will be replaced.

1. Case                  6. Nut
2. Spring washer      7. Nut
3. Gasket               8. Lockwasher
4. Bellhousing         9.Seal
5. Lockwasher
