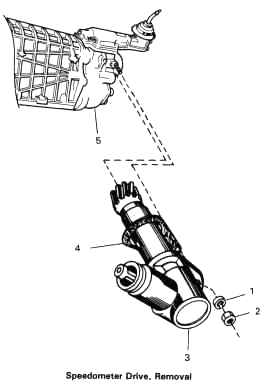

Remove Speedometer Drive

a. Remove nut (2) and lockwasher (1) attaching
   speedometer drive (3) to rear housing (5).

b. Remove speedometer drive (3) and gasket (4).

1. Lockwasher
2. Nut
3. Speedometer drive
4. Gasket
5. Rear housing

Remove Shift Tower

a. Remove four nuts (7) and lockwashers (6).

b. Remove entire. shift tower assembly (1) by
    lifting then pushing shift lever forward until tab
    on dog (2) clears engaging lever (4) in rear
    housing (3). Remove gasket (5).

1. Shift tower assembly
2. Dog
3. Rear housing
4. Engaging lever
5. Gasket
6. Lockwasher
7. Nut
