Disassembly

Page 15

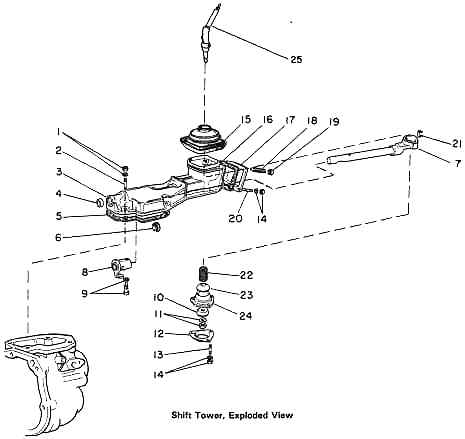

Disassemble Shift Tower

NOTE: Disassemble shift tower assembly only to the extent to replace defective components.

a. Remove boot (15).
b. Remove four nuts and lockwashers (14), cover (17), and gasket (16). Do not remove reverse lockout
    screw (18) and locknut (19) unless damaged.c. Remove three nuts and lockwashers (14), and cover (112).
d. Remove nut and washer (11), bearings (10), socket (24), cover (23), and spring (22).
e. Lift shift lever (25) from shift tower. Remove spring clip (21).
f. Remove bolt and lockwasher (9). Slide shaft out shift tower rear, then remove dog (8).
g. Remove cap (4), bearing (6), and studs (2, 13, and 20) only if damaged.



1. Nut and lockwasher
2. Stud
3. Shift tower
4. Cap
5. Gasket
6. Bearing
7. Shaft
8. Dog
9. Bolt and lockwasher		 10. Bearing
11. Nut and washer
12. Cover
13. Stud
14. Nut and lockwasher
15. Boot
16. Gasket
17. Cover
18. Reverse lockout screw		 19. Locknut
20. Stud
21. Spring
22. Spring
23. Cover
24. Socket
25. Shift lever
