Page 16

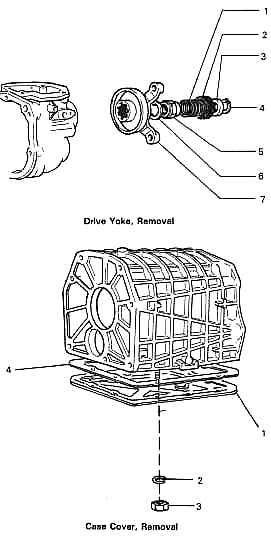

Remove Yoke

a. Remove snap ring (4), spacer (3), seal (2), and spring (1) from output shaft.

b. Using adapter A-55130 on yoke (7), remove nut (5) and washer (6).

c. Using a puller, remove yoke (7).

1. Spring
2. Seal
3. Spacer
4. Snap ring
5. Nut
6. Washer
7. Yoke

Remove Case Cover

a. Remove ten nut (3) and lockwasher (2). b. Remove cover (1) and gasket (4).

1. Cover
2. Lockwasher
3. Nut
4. Gasket
