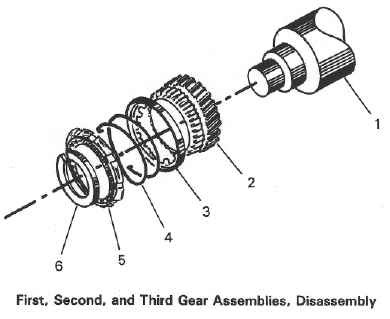

 FIRST, SECOND, AND THIRD GEAR ASSEMBLIES

Disassemble First, Second, and Third Gear Assemblies

NOTE:  Although different in size, the first, second, and third gear assemblies are similar in assembly. Also, the third gear assembly is assembled on the main shaft.

a. Using tool A.701 59, remove snap ring (6).

b. Remove synchro (5), spring (4) and spring    retainer (3) from gear (2).

c. Remove third gear assembly from main shaft    (1).


1 . Main shaft (third gear only)
2. First, second, or third gear		 3. Spring retainer
4. Spring
5. Synchro
6. Snap ring

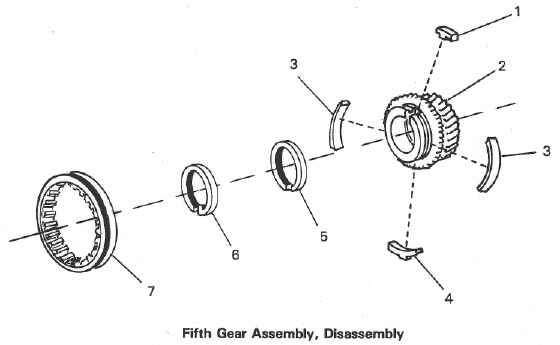

 FIFTH GEAR ASSEMBLY

 Disassemble Fifth Gear Assembly

a. Remove sleeve (7).
b. Remove synchromesh parts snap ring (6). Discard snap ring.
c. Using tool A.701 66, remove synchromesh ring (5).
d. Remove spring (3), lock (1), and stop (4) from fifth gear (2).



1. Lock
2. Gear
3. Spring
4. Stop		 5. Synchromesh ring
6. Synchromesh parts snap ring
7. Sleeve
