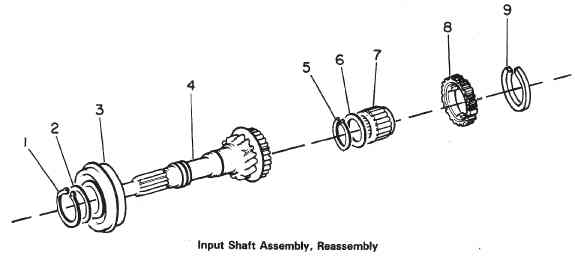

Reassemble Input Shaft Assembly

a. Lightly coat parts with oil.
b. Place input shaft (4) in press. Support on gear end.
c. Onto input shaft (4) input end, assemble bearing (3) with retaining ring away from gear, spring washer
    (2), snap ring (1), and tool A.70350.

d. Use press to compress spring washer (2), then seat snap ring (1) in its groove. Remove from press.
e. Onto input shaft (4) output end, assemble synchro (8) with small end away from gear.
f. Assemble snap ring (9) in its groove.
g. Assemble snap ring (5) and washer (6), and bearing (7).
h. Coat bearing (7) with heavy grease, then insert in input shaft (4).
i Lay input shaft assembly on its side so bearing (7) does not come out.
