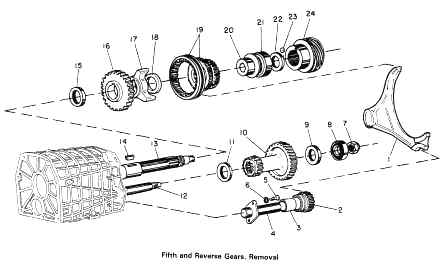

Remove Fifth and Reverse Gears

a. Remove speedometer drive gear (24), ball (23), spacer (22), and bearing (21).
b. Remove 27-mm nut (7), bearing (8), and spacer (9).
c. Carefully tap fifth and reverse gear 0 0) off until its internal splines are
   disengaged.
d. As fifth and reverse gear is removed from countershaft (12), remove reverse
   sliding gear (2), fifth and reverse gear (10), spacer (11 ), bushing (20), fifth and
   reverse gear shift fork (1), and fifth gear assembly (19). Disassemble fifth gear
    assembly as specified in Fifth Gear Assembly.
e. Remove spacer (18), hub (17), and reverse gear (16).
f. Remove key (14) and spacer (15) from main shaft (13).
g. Remove bushing (3) and shaft (4) attached with screws (5) and lockwasher (6)
   only if damaged.
