Page 20

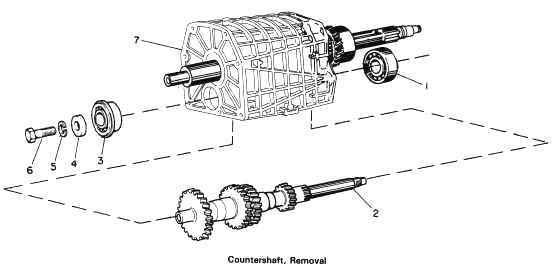

Remove Countershaft

a. Remove bolt (6), lockwasher (5), and washer (4).
b. Using a soft mallet, tap on output end of countershaft (2) until bearing (3) can be removed from case (7).
c. Carefully tap on bearing (1) outer race to remove from case (7).
d. Remove countershaft (2) from case.



1. Bearing
2. Countershaft
3. Bearing
4. Washer
5. Lockwasher
6. Bolt
7. Case
