Reassembly

Page 41

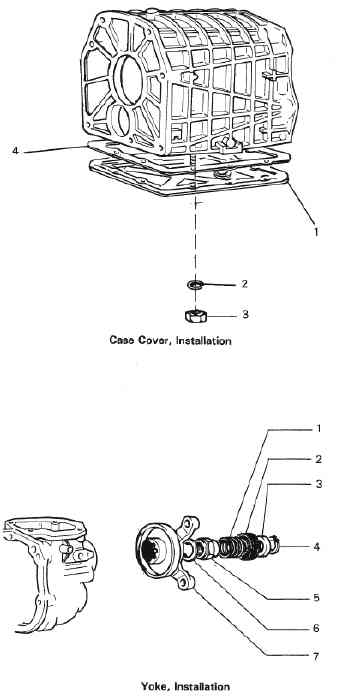

Install Case Cover
a. Assembie new gasket (4) to case.
b. Assemble cover (1), ten lockwashers (2), and
    nuts (3).
1. Cover
2. Lockwasher
3. Nut
4. Gasket















Install Yoke
a. Coat splines of yoke (7) with antiseize compound,     then assemble to main shaft.
b. Assemble washer (6) and nut (5). Using adapter     A-551 30 on yoke (7), tighten nut to 108 lb ft torque.
c. Assemble spring (1), seal (2), spacer (3), and snap     ring (4).
d. Coat seal (2) with heavy grease.

1.  Spring
2. Seal
3. Spacer
4. Snap ring
5. Nut
6. Washer
7. Yoke
